Docs / Units

Units Module

The Units module provides a simple and organized way to manage measurement units inside the application. It supports full CRUD operations, bulk deletion, filters, and Laravel pagination. The interface is built on top of the Vendventory admin interface and supports both light mode and dark mode for a consistent admin experience.

Modernization update: units now expose operational precision, conversion factor, packaging format, and an expanded type model in the CRUD UI. This makes units more useful for governed purchasing, POS packaging, and branch-aware retail operations.

Important: Unlike categories, the Units module does not use parent and child relationships. Each unit is stored as an independent record.

Overview

The Units module is used to define and manage measurement units that may be used across the application, such as for products, stock, inventory, pricing, or reporting. Examples include units like Piece, Kilogram, Liter, and Meter. The listing page helps administrators manage records efficiently through filters, row actions, and bulk actions. Laravel pagination is used so the page remains clean and scalable when the number of records increases.

Main purpose
Helps administrators create, organize, sort, activate, deactivate, and manage measurement units from one centralized interface.

Light and dark support
The module is designed to work properly in both light mode and dark mode layouts.

Core Features

Operational fields now available in unit CRUD

Type: supports count, quantity, weight, volume, length, and other.
Decimal Precision: controls how many decimals the unit should normally display or accept.
Conversion Factor: supports cleaner purchase-unit and issue-unit interpretation.
Packaging Format: helps explain how the unit appears in packaging or retail handling.
Products Count: the index now highlights how many product records depend on a given unit.

Included Functionality

Create: Add a new unit with fields such as name, short name, type, sort order, and active status.
Read / List: View all unit records in a clean tabular listing with pagination.
Update: Edit existing unit records whenever changes are needed.
Delete: Remove a single unit record from the system.
Bulk Delete: Select multiple records from the table and delete them together.
Filters: Use filter options to narrow down the list and find records faster.
Laravel Pagination: Keeps large unit listings manageable and improves usability.
Dark Mode Support: The module UI also supports dark mode for users who prefer low-light interfaces.

Architecture

The Units module follows a layered structure to keep the codebase clean, scalable, and easier to maintain. Instead of placing all logic inside a single controller, responsibilities are separated across multiple layers.

Layered Structure Used

Controller: Handles incoming requests, returns views or responses, and coordinates module flow.
Service: Contains the main business logic of the Units module.
Repository: Manages data access and database-related operations in a structured way.
Repository Interface: Defines the contract used by the repository layer, making the module easier to extend and maintain.
Model: Represents the units table and its related data structure.

This layered approach keeps controllers cleaner and separates business logic from database operations for better maintainability.

Permissions & Security

Permissions are already present in the application and are also applied to the Units module. The system uses Spatie Laravel Permission with a multi-layered approach, so access control is enforced at more than one point.

How Permission Checks Are Applied

Menu Items: Navigation items are shown or hidden according to assigned permissions.
Controllers: Controller methods are protected so unauthorized users cannot access restricted actions.
Requests: Request classes also apply authorization checks before processing data.
Spatie Laravel Permission: Roles and permissions across the module are managed using Spatie's package.

Even if a user tries to access a route manually, layered permission checks still help prevent unauthorized actions.

Database Structure

The Units module stores its data in the units table. The table is designed to support unit naming, short naming, classification by type, sorting, activation status, and timestamps.

Field Explanation

id: The primary key of the table. Each unit record has its own unique identifier.
name: The full display name of the unit, such as Piece, Kilogram, Liter, or Meter.
short_name: A shorter and unique version of the unit name, such as pcs, kg, ltr, or m. This field must remain unique.
type: Defines the classification of the unit. Supported values are count, weight, volume, and length.
sort_order: A numeric field used to control how units are arranged in the listing.
is_active: A boolean field that determines whether the unit is active or inactive.
created_at: Stores the date and time when the unit was created.
updated_at: Stores the date and time when the unit was last updated.

Unit Types

Supported Type Values

count: Used for countable items such as piece, box, pack, or unit.
weight: Used for weight-based measurements such as kilogram or gram.
volume: Used for liquid or capacity-based measurements such as liter or milliliter.
length: Used for length-based measurements such as meter, foot, or inch.

Unit types make data entry more organized and also help keep units grouped logically.

Indexes

Performance-Related Indexes

Index on type and is_active: Helps improve filtering and listing performance when records are queried by type and status.

This index helps keep admin listing and filtering faster as unit records grow.

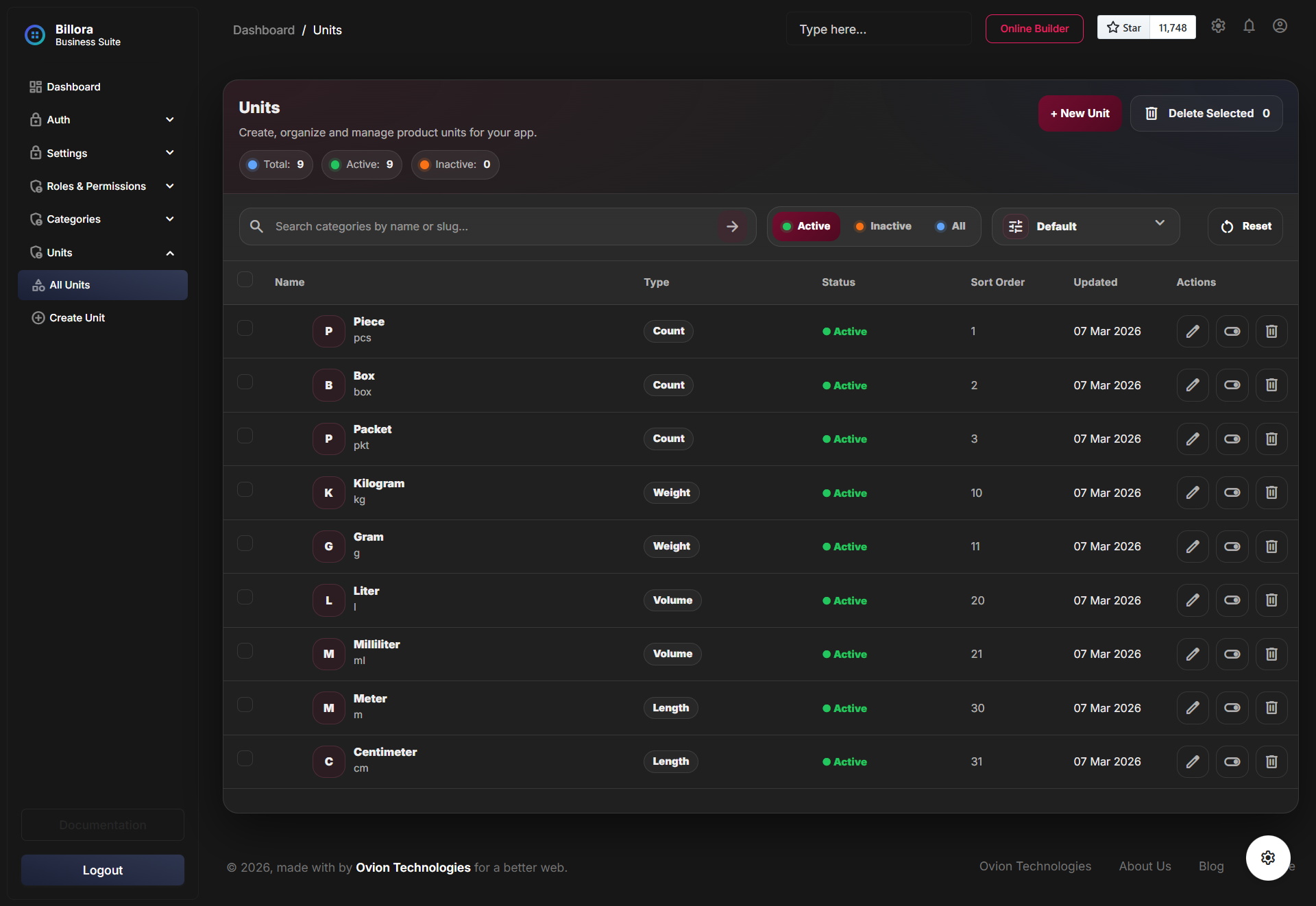

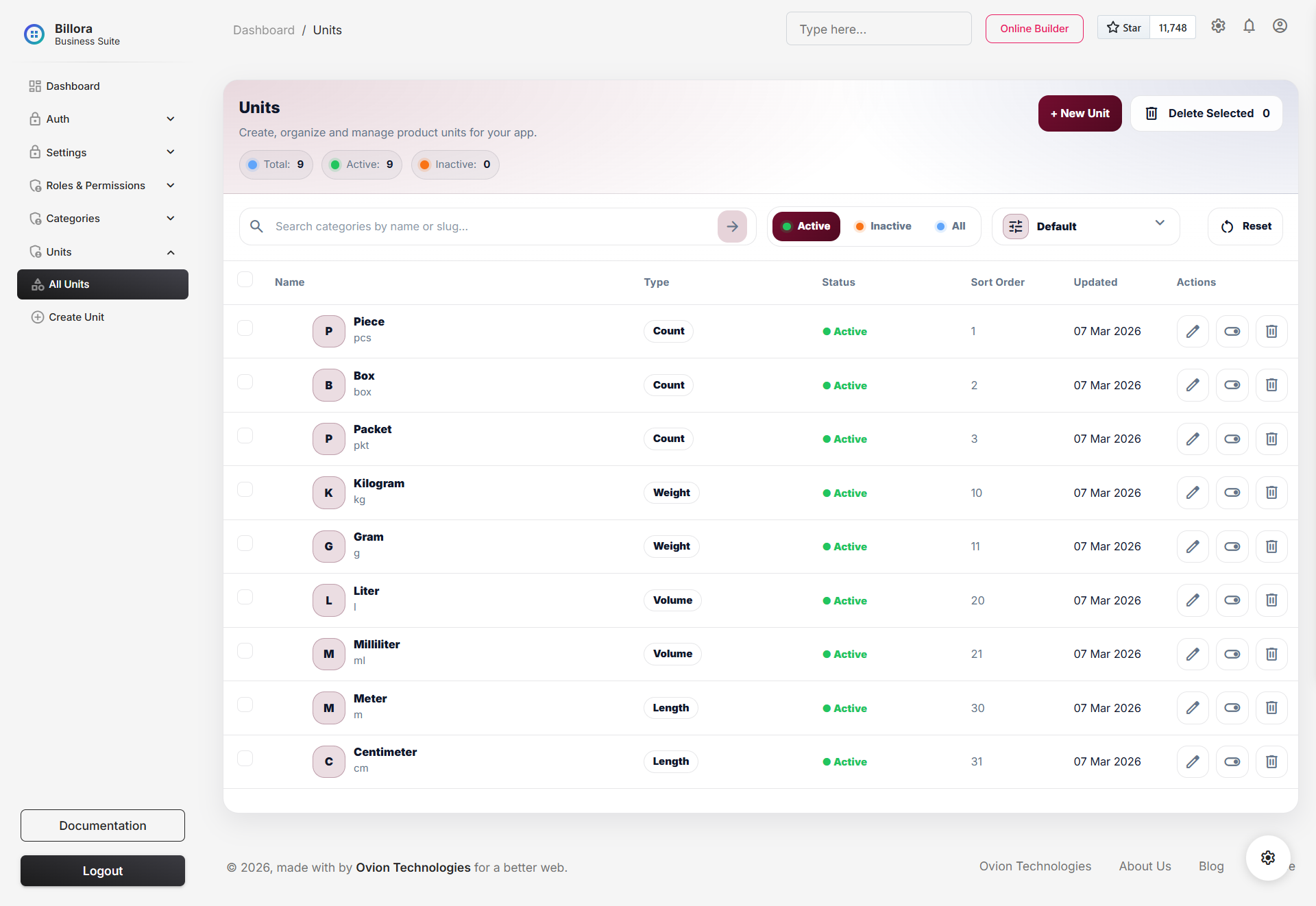

Listing Page

The listing page is designed for daily administrative use. It allows users to browse unit records, apply filters, use row-level actions, and perform bulk deletion where permitted. Laravel pagination ensures the interface remains readable and practical.

Listing Screen Highlights

Paginated table: Keeps the interface clean when many records exist.
Filter support: Helps narrow down records quickly based on selected criteria.
Bulk selection: Multiple records can be selected for bulk deletion.
Action controls: Common row actions such as edit and delete are available according to permission.
Status visibility: Active and inactive units can be identified more easily in the table.
Type visibility: Unit type can be shown in the listing for quick recognition.

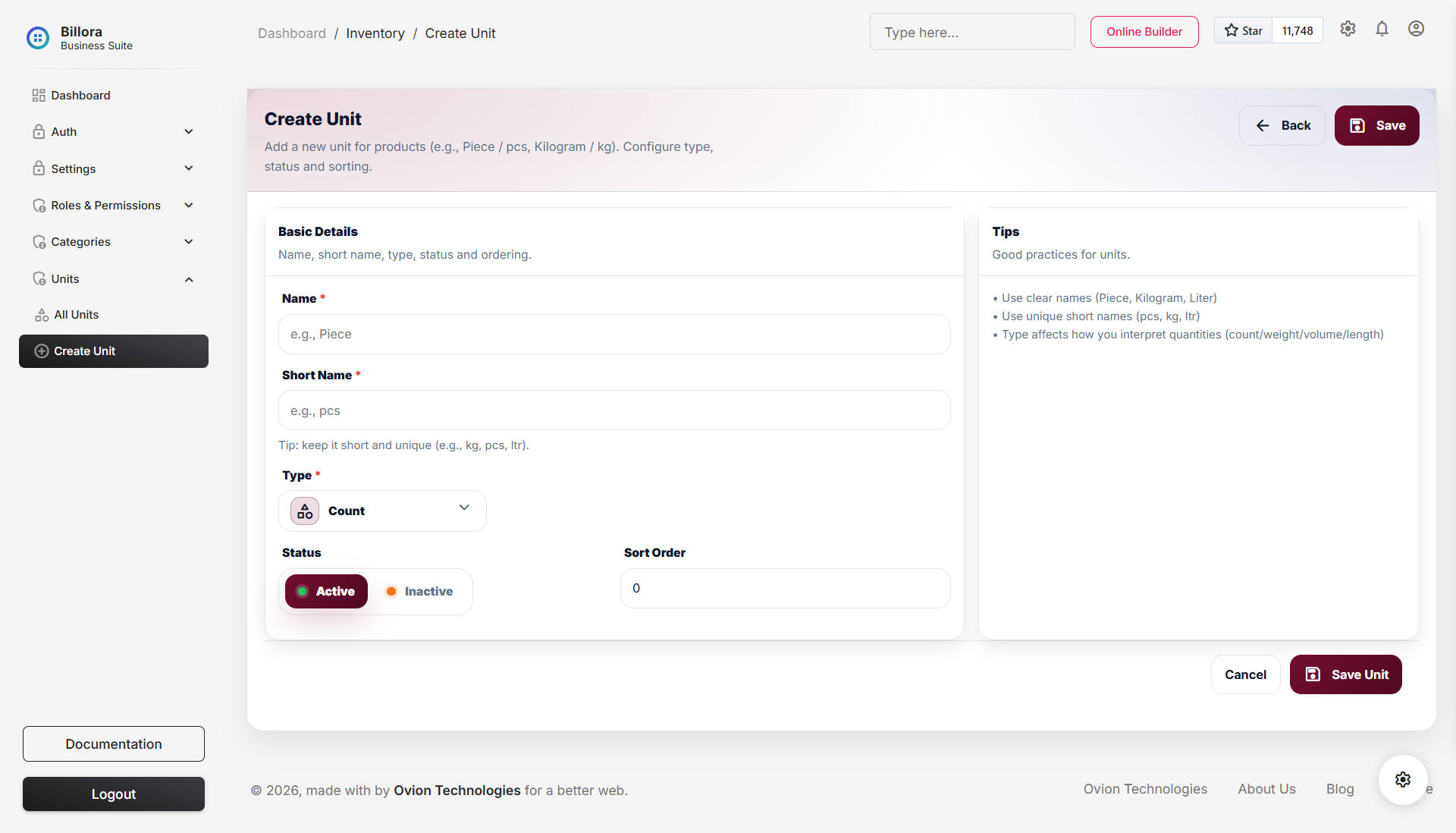

Units create or edit form in light mode — Create or edit form in light mode

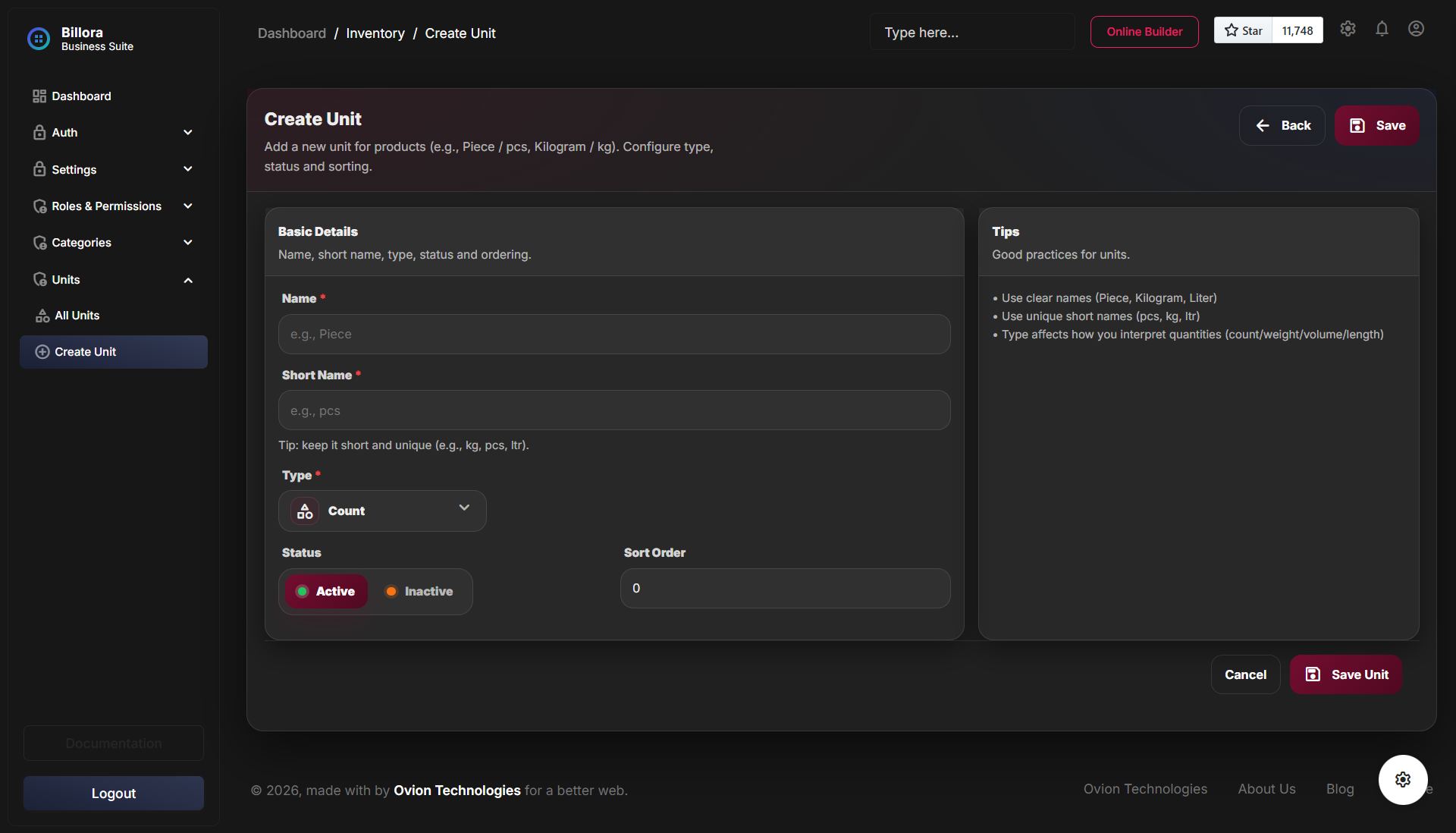

Units create or edit form in dark mode — Create or edit form in dark mode

Important Notes

Things to Remember

The short_name field must remain unique.
Units do not use parent-child relationships.
Permissions are enforced through menu, controller, and request layers.
Both light mode and dark mode are supported in the UI.
The type field helps classify each unit properly.

The Units module is intentionally kept simple so it remains stable, easy to understand, and practical for common administrative use cases.

Screen-by-Screen Unit Breakdown

What each unit screen does

Unit listing page: browse the measurement units already available in the catalog and see which ones are safe to reuse.
Create unit: add a new unit code, name, type, precision, and conversion support used by products and transaction rows.
Edit unit: fix naming or operational settings when the original unit was saved incorrectly.
Type and precision fields: these tell the app whether the unit is countable, weight-based, volume-based, or packaging-oriented and how many decimals are acceptable.
Why it matters: units look simple, but they affect pricing, quantity entry, product packaging, and transaction accuracy across purchases, stock outs, and POS.
